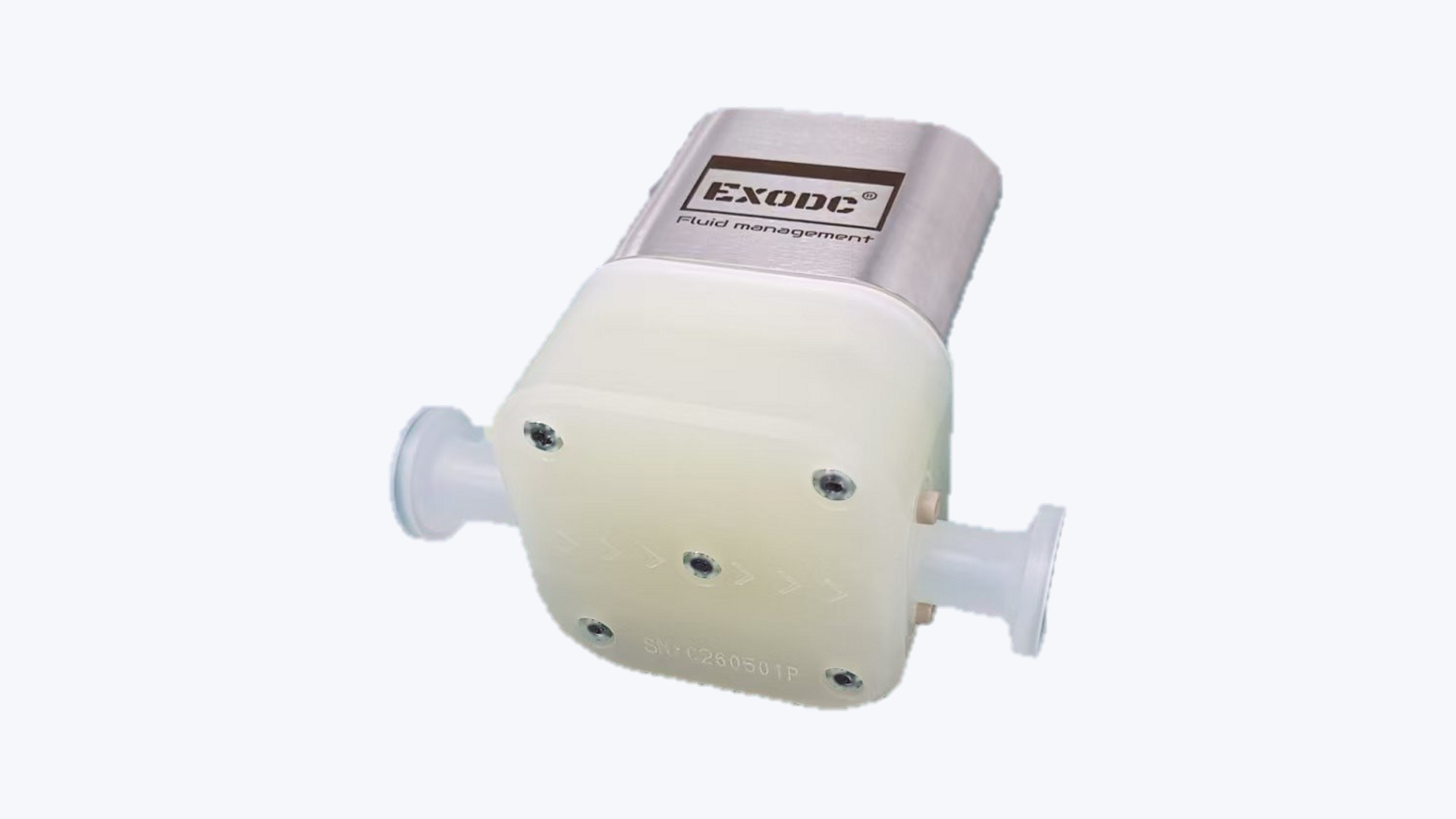

XAccurflow^® single-use diaphragm pump head

Single use

简介

Exodc^{^®}XAccurflow^{^®} single-use diaphragm pump head is engineered for biopharmaceutical single-use fluid circuits. The pump housing is polypropylene (PP); the diaphragm is manufactured from thermoplastic vulcanizate (TPV). Check valves and O-rings are silicone. All wetted parts are validated for biocompatibility and physicochemical performance.

The range comprises nine serial sizes, offering flow rates from 0.9 to 10000 L/h, a maximum working pressure of 0.4 MPa, operating temperatures between 0 °C and 60 °C, and pump chamber volumes from 6.6 to 970 mL. The pump head accommodates fluid transfer from laboratory scale through to commercial production.

It is qualified to withstand 25 kGy gamma irradiation, enabling terminal sterilization and integration within aseptic manufacturing processes.

特点

Single-use design: no cleaning or validation required: Eliminates CIP/SIP and cleaning validation, reduces batch turnaround time and removes cross-contamination risk
Material compliance with fully verified biosecurity: Complies with USP <87> and USP <88>
Gamma sterilisation compatible: Qualified to withstand 25 kGy gamma irradiation for aseptic processing and terminal sterilisation
Nine size options for wide operating range: Flow rates from 0.9 to 10000 L/h, enabling seamless scale-up from lab scale to commercial production
Gentle low-shear transfer: Positive displacement diaphragm delivery with low pulsation and low shear to protect sensitive fluids such as cells and proteins
Quick-change, plug-and-play: Rapid disconnect interface with the drive unit, minimising downtime and lowering overall maintenance costs

应用场景

single-use process steps including vaccine and antibody manufacturing, cell culture, chromatography purification, ultrafiltration and diafiltration, media feeding, buffer preparation and buffer exchange, sterile filtration, filling and dispensing.
gene therapy, blood products, food and beverage, and other industries requiring high hygienic standards and precise fluid transfer.

技术参数

Item	Serial 30	Serial 60	Serial 100	Serial 300	Serial 600	Serial 1000	Serial 2000	Serial 5000	Serial 10000
*Wetted components Material	Pump housing: Polypropylene (PP)
	Diaphragm: Thermoplastic Vulcanisate (TPV)
	Check valves, O-rings: Silicone
Flow range L/h	0.9~30	0.9~60	0.3~100	0.6~270	3.6~600	6.9~1000	6.9~1800	18.6~5000	26.1~10000
Chamber volume ml (Approx.)	6.6	6.6	18	18	94	94	104	910	970
Max.pressure Mpa	0.4	0.4	0.4	0.4	0.4	0.4	0.4	0.4	0.4
Temperature range ℃	0~60	0~60	0~60	0~60	0~60	0~60	0~60	0~60	0~60
Sterilisation	Gamma irradiation 25kGy
21 CFR Part177	Diaphragm and check valve seal assembly comply with FDA 21 CFR 177.2600; pump housing complies with FDA 21 CFR 177.1520
Biocompatibility	Wetted parts meet USP Class VI and have passed USP <87> and USP <88> testing
