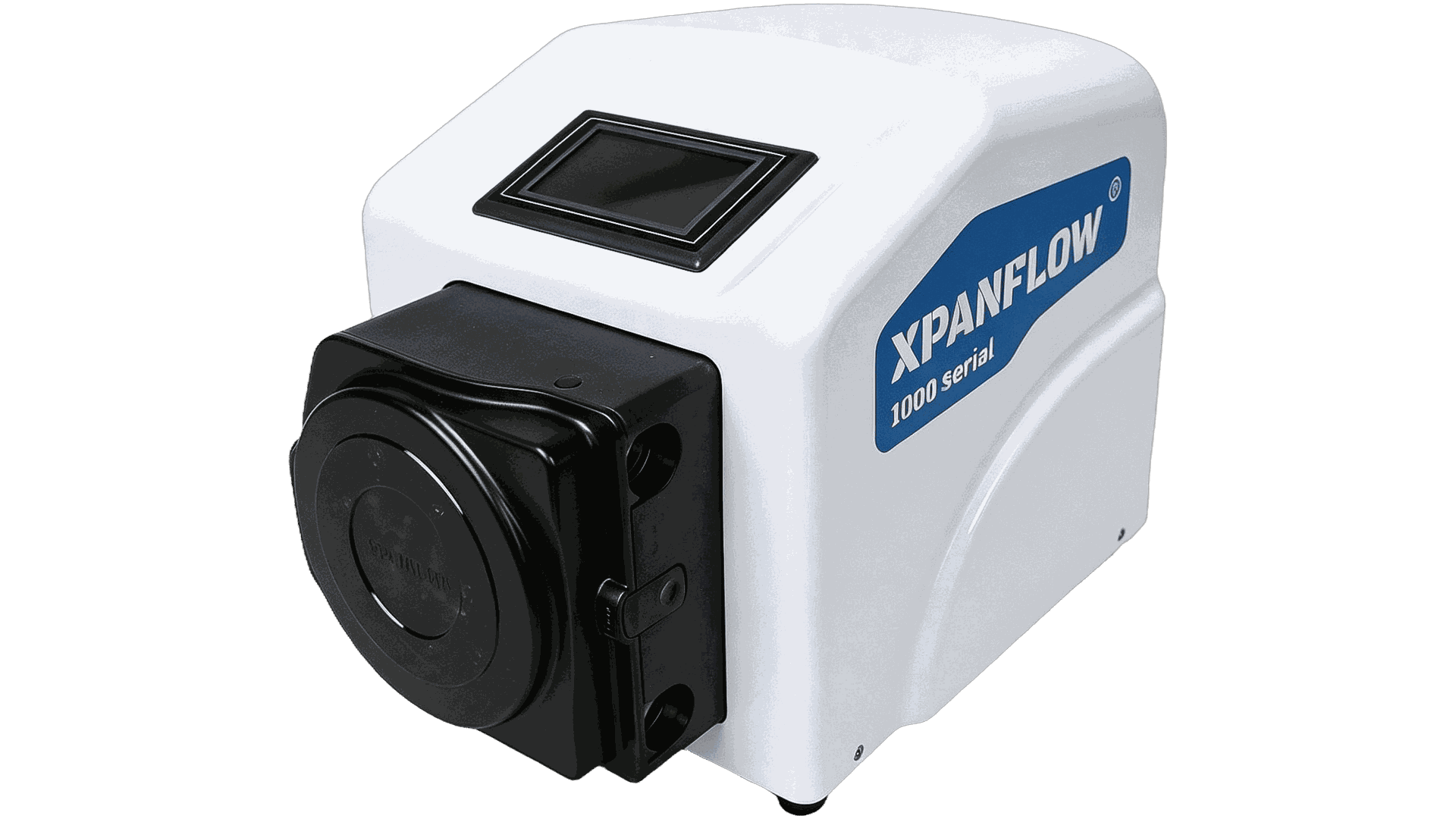

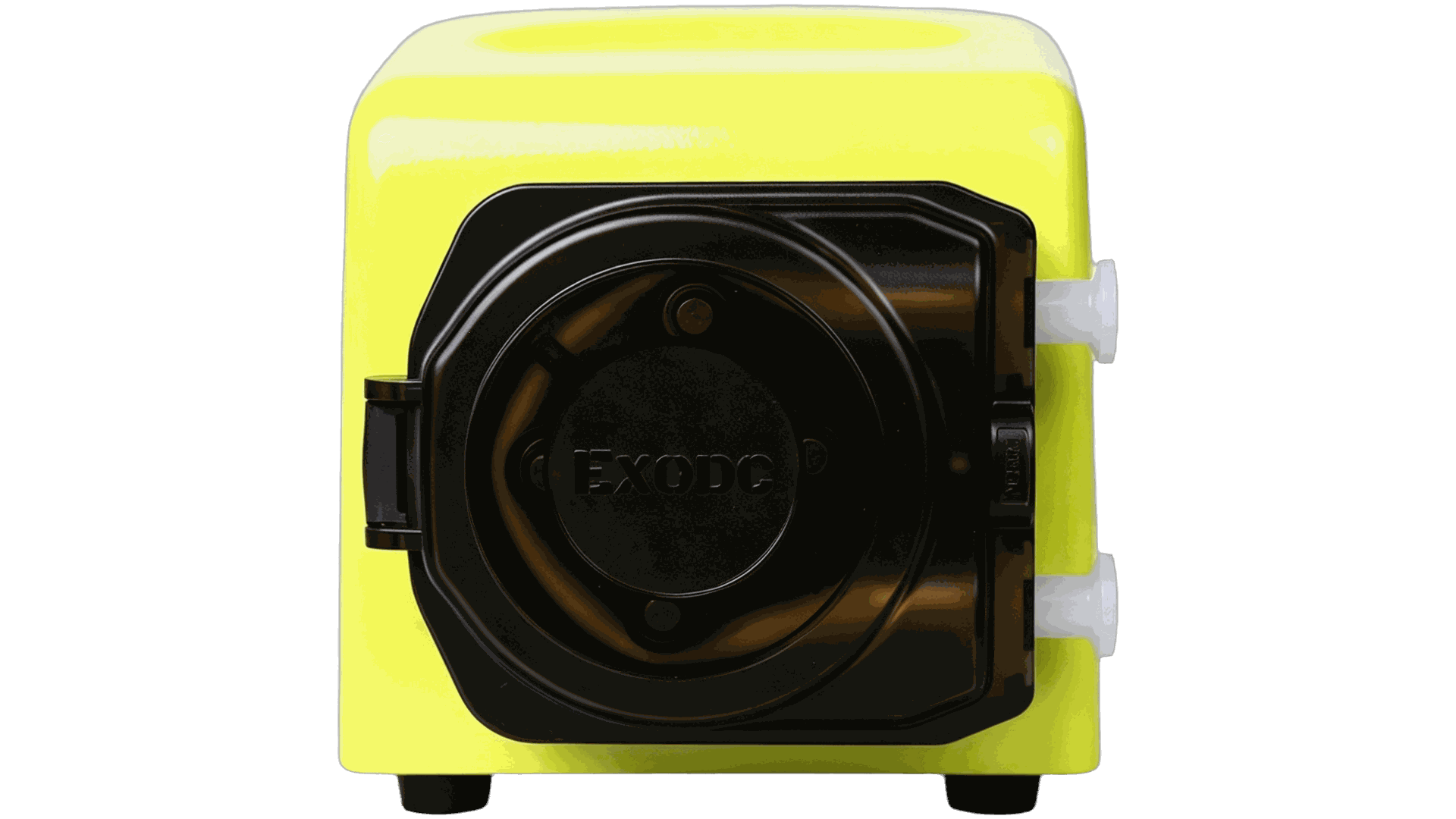

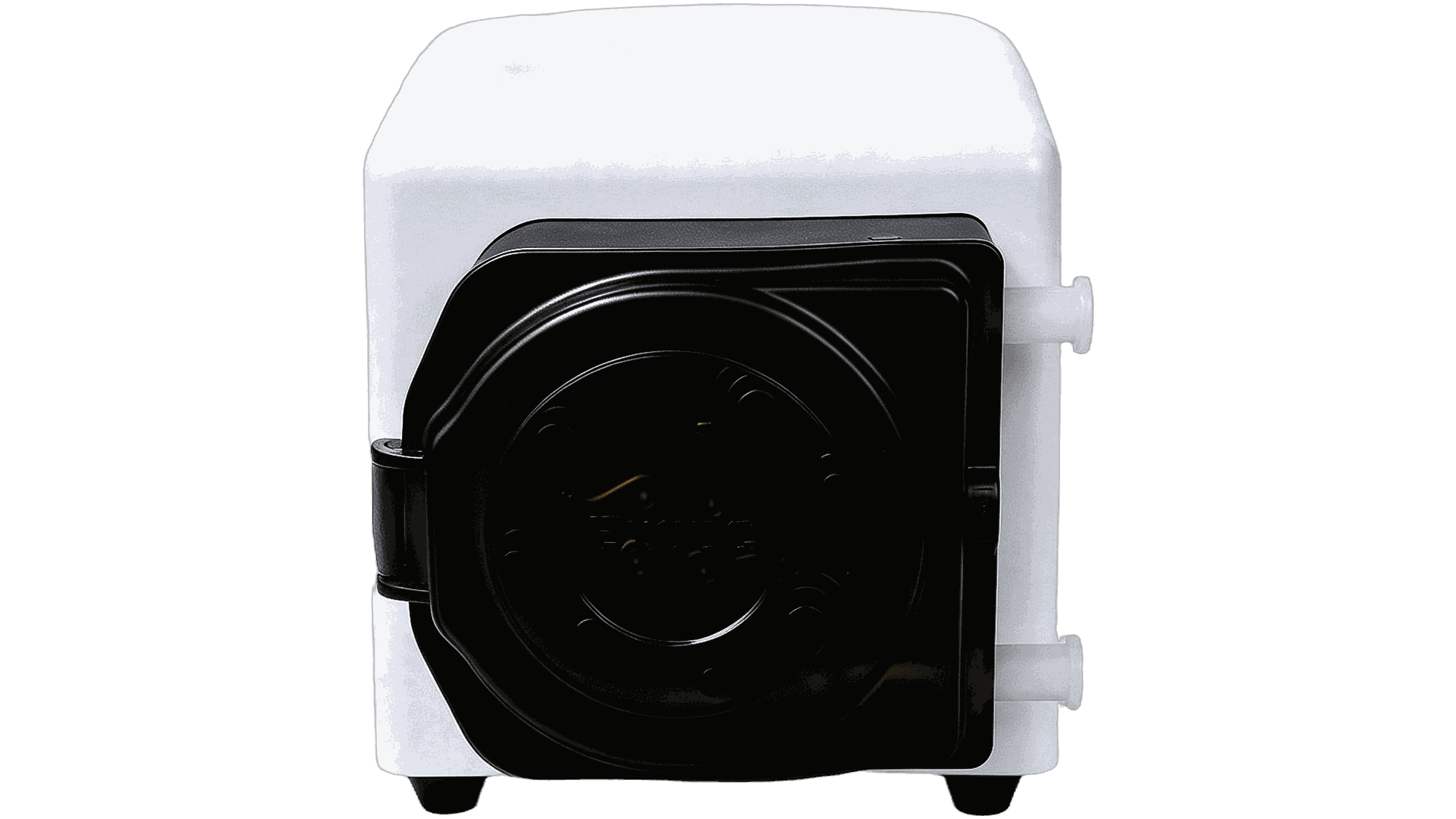

Xpanflow^® Peristaltic Pump

Name: Xpanflow ® Peristaltic Pump
Brand: Xpanflow

Sanitary Transfer · Precision Metering · Low‑Shear Fluid Protection

咨询下载产品资料

简介特点应用场景技术参数其他联系我们

简介

The Xpanflow^{^®} peristaltic pump delivers reliable low‑speed, high‑flow and consistent constant‑flow performance. Excellent linearity between flow rate and rotational speed, with onboard flow calibration capability to sustain stable continuous conveyance.

Two platform configurations available: System Pump and Stand‑Alone Pump

System Pump: Native support for PROFINET^®, RS485 and 0‑10 V/4-20mA analog remote control for seamless integration into automated bioprocess production lines.
Stand‑Alone Pump: Equipped with high‑resolution colour touch‑screen and intuitive HMI. Visual runtime status reduces human error and maximises operational uptime.

Pump heads accept Xdspure^{^®} XPT modules(quick‑connect tubing) for fast tube change‑out, or standard continuous pump tubing. Flexible compatibility supports both single‑use and reusable process workflows. Wide continuous flow range covers multi‑scale fluid transfer across the full biopharma manufacturing workflow.

特点

Low‑Speed Operation | Gentle, Low‑Shear Performance

Minimised shear stress and flow pulsation safeguard sensitive feeds including living cells and active proteins. Lower operating velocity also reduces tubing fatigue and extends service life.

300 Series: 2200:1 wide turndown ratio, minimum speed ~0.1 r/min
1000 Series: 2650:1 wide turndown ratio, minimum speed ~0.1 r/min

High‑Flow Capability | Scalable Efficient Conveyance

Continuous overlapping flow spectrum. One pump platform satisfies lab‑scale, pilot‑scale and full production‑scale process requirements.

Precise Constant Flow | Linear & Reproducible Output

Consistent displacement per revolution; matched forward/reverse pumping behaviour. Ideal for precision feeding, fixed‑volume dosing and scalable process transfer.

应用场景

Upstream cell culture and fermentation
Precision feed addition
Micro-reagent dosing
Sterile inoculation and harvest transfer
Bulk fluid transfer
Formulation filling and aliquoting

技术参数

Item	300 Serial
Compatible Tubing Modules ID	6.4 / 9.6 mm
Compatible Pump Tubing ID	0.5 / 1.6 / 3.2 / 4.8 / 6.4 / 9.6 mm
Compatible Tubing Wall Thicknesses	1.6/2.4 mm
Turndown Ratio	6.4 mm：0.02 ～ 90 L/h； 9.6 mm：0.08 ～ 160 L/h
Maximum Rotational Speed	220 r/min
Turndown Ratio	2200 : 1

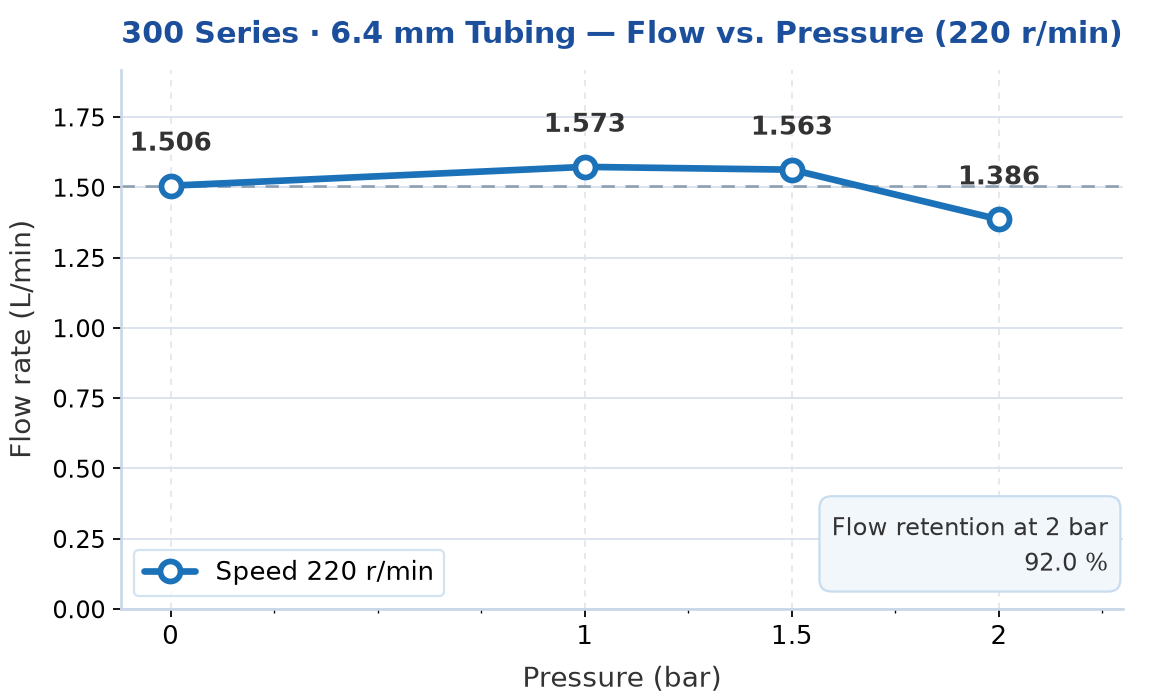

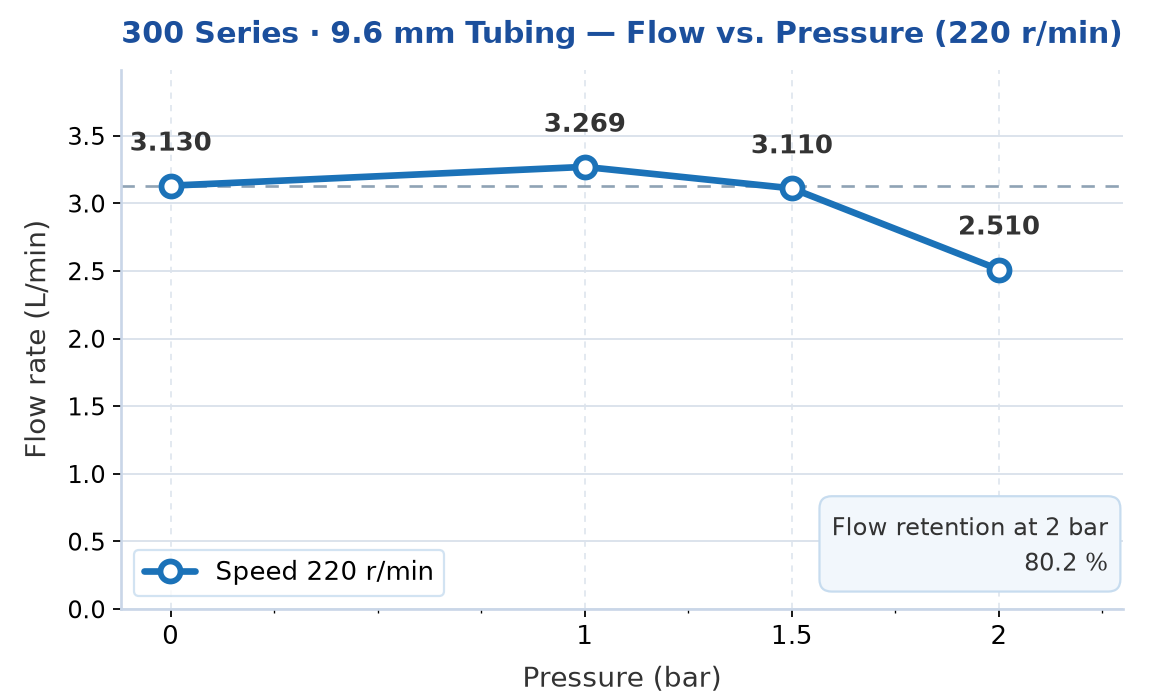

Displacement per Revolution (0 bar)	6.4 mm：7.2 mL/rev； 9.6 mm：13.8 mL/rev
Recommended Max Operating Pressure	2 bar
Suction Lift	6.4 mm: 9.6 m @10% speed; 10.2 m @30% speed; 10.3 m @50% / 70% / 100% speed
Suction Lift	9.6 mm:9.1 m @10% speed; 9.9 m @30% speed; 10.2 m @50% /70% speed; 10.3 m @100% speed
Operating Temperature	5 ℃ ～ 40 ℃
Storage Temperature	-25 ℃ ～ 65 ℃（-13 ℉ ～ 149 ℉）
Humidity (Non‑Condensing)	80% RH ≤ 31 ℃, linear derate to 50% RH @ 40 ℃
Maximum Operating Altitude	2000 m
Overall Dimensions	300 Serial IC :372 × 225 × 265 mm
Overall Dimensions	300 Serial SC :321 × 200 × 211 mm
Weight	300 Serial IC :10 kg
Weight	300 Serial SC :6 kg
Power Consumption	400 W
Power Input	AC 230 V / 50 Hz（ 220 V ± 10% tolerance）
Full‑Load Curren	1.75 A（4 A fuse）
Control Interface	300 Serial IC :Local manual control
Control Interface	300 Serial SC :PROFINET^{^®}、RS485、Remote analog（0-10 V,4-20mA）

Item	1000 Serial
Compatible Tubing Modules ID	12/ 16 mm
Compatible Pump Tubing ID	6.4 / 8.0 / 9.6 / 12.0 / 12.7 / 16 / 17 mm
Compatible Tubing Wall Thicknesses	3.2/4.0 mm
Turndown Ratio	6.4 mm：0.02 ～ 90 L/h； 9.6 mm：0.08 ～ 160 L/h
Maximum Rotational Speed	220 r/min
Turndown Ratio	2200 : 1

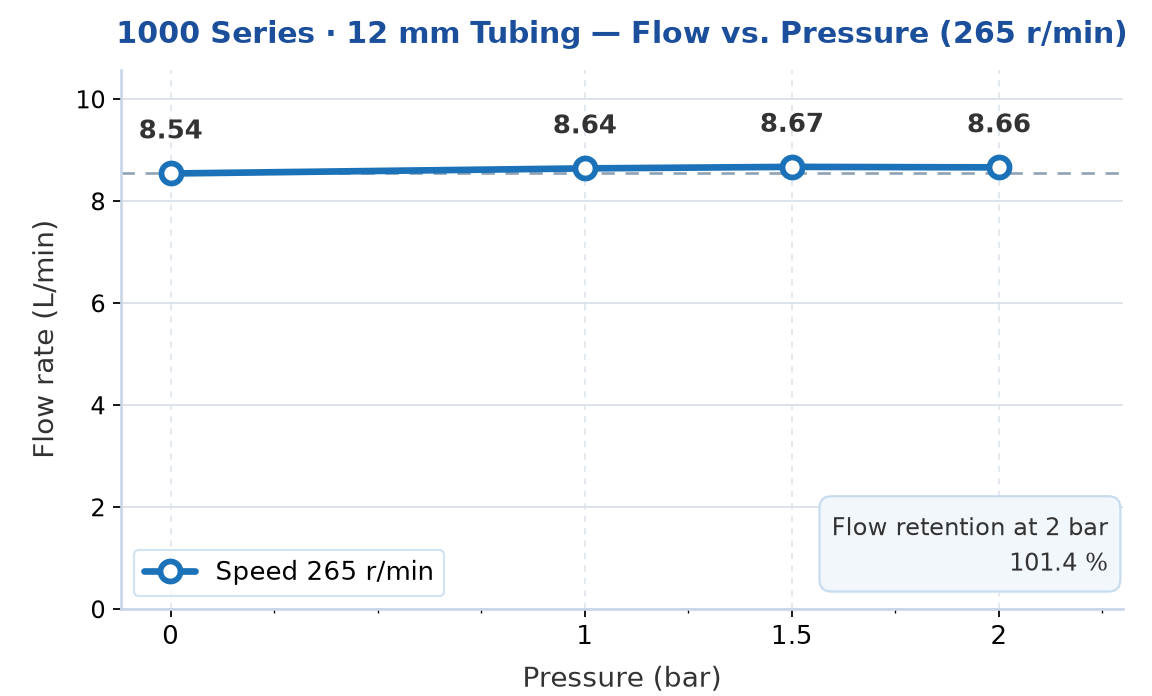

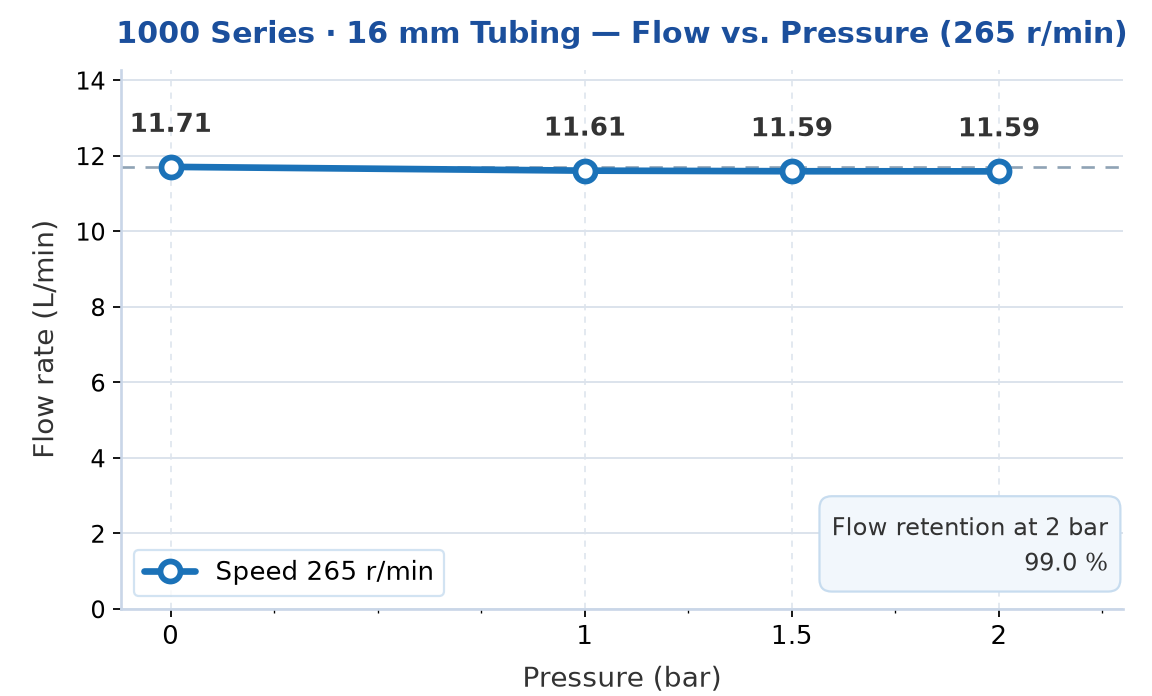

Displacement per Revolution (0 bar)	12 mm：31.4 mL/rev； 16 mm：45.4 mL/re
Recommended Max Operating Pressure	2 bar
Suction Lift	12 mm:1.2 m @10% speed; 6.6 m @30% speed; 9.8 m @50% /70% speed;10 m @100% speed
Suction Lift	16 mm:3.5 m @10% speed;6.7 m @30% speed;9.3 m @50% speed;9.5 m @70% speed;9.9 m @100% speed
Operating Temperature	5 ℃ ～ 40 ℃
Storage Temperature	-25 ℃ ～ 65 ℃（-13 ℉ ～ 149 ℉）
Humidity (Non‑Condensing)	80% RH ≤ 31 ℃, linear derate to 50% RH @ 40 ℃
Maximum Operating Altitude	2000 m
Overall Dimensions	1000 Serial IC :437 × 304 × 304 mm
Overall Dimensions	1000 Serial SC :389 × 266 × 280 mm
Weight	1000 Serial IC :18.5 kg
Weight	1000 Serial SC :15 kg
Power Consumption	750 W
Power Input	AC 230 V / 50 Hz（ 220 V ± 10% tolerance）
Full‑Load Curren	3.84A（6 A fuse）
Control Interface	1000 Serial IC :Local manual control
Control Interface	1000 Serial SC :PROFINET^{^®}、RS485、Remote analog（0-10 V,4-20mA）
